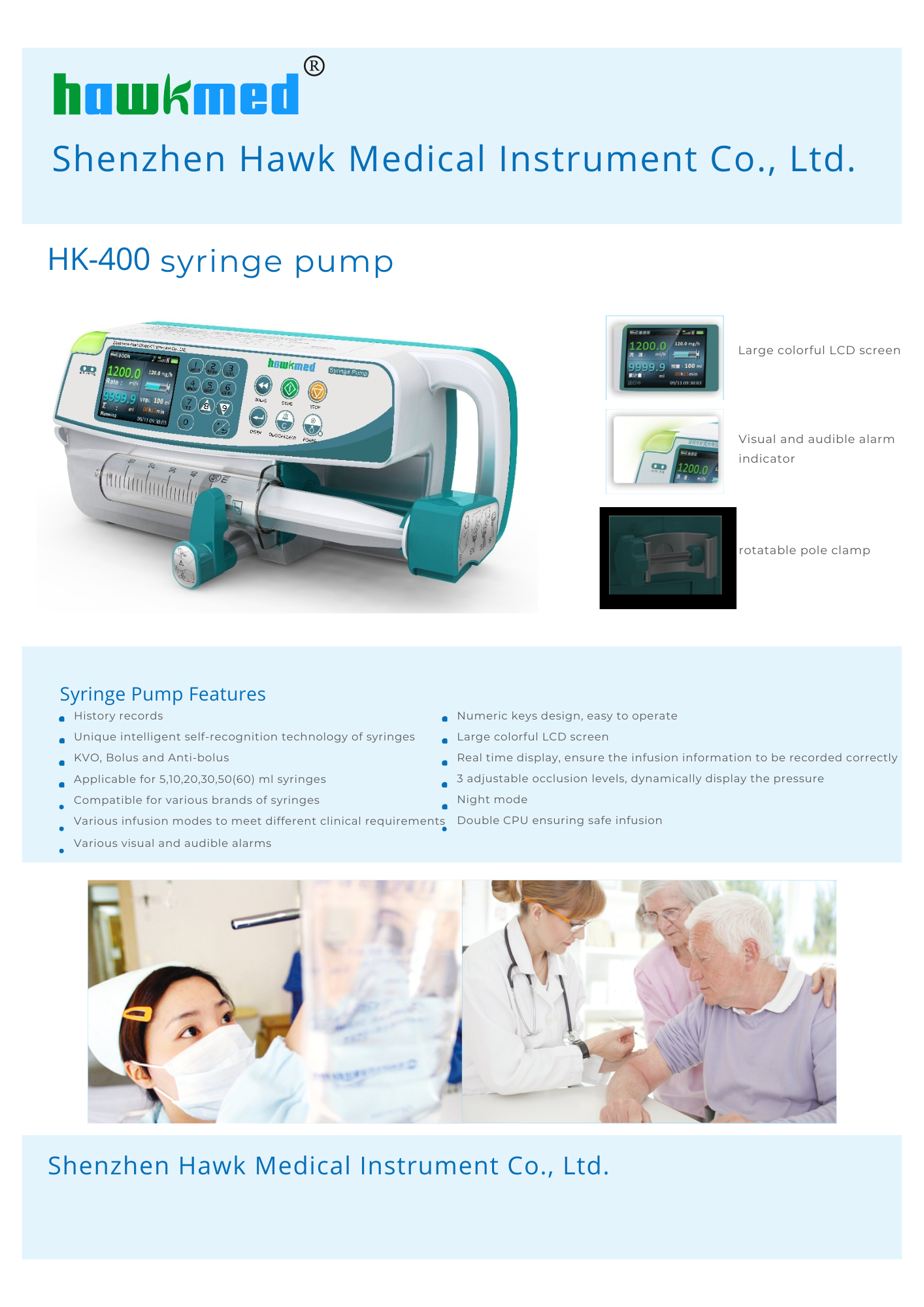

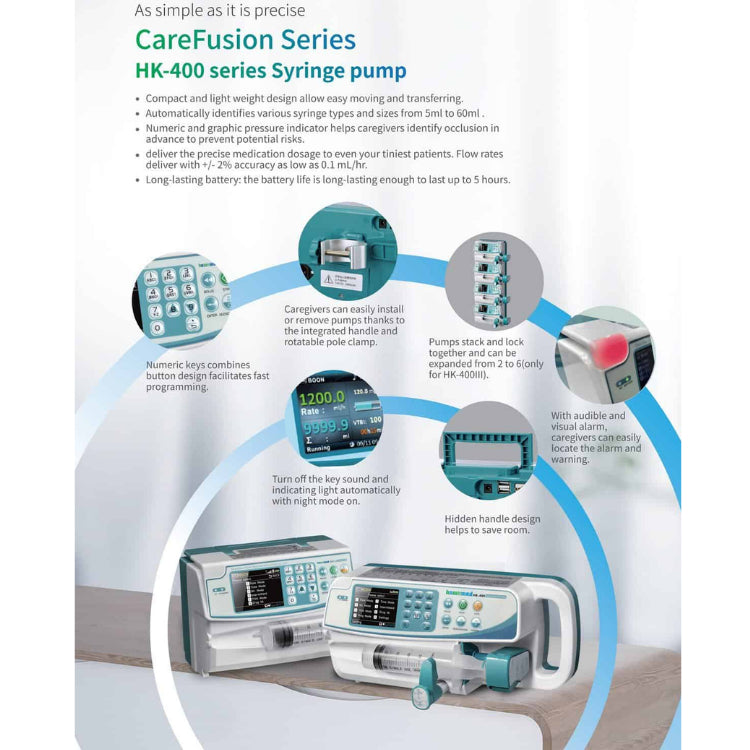

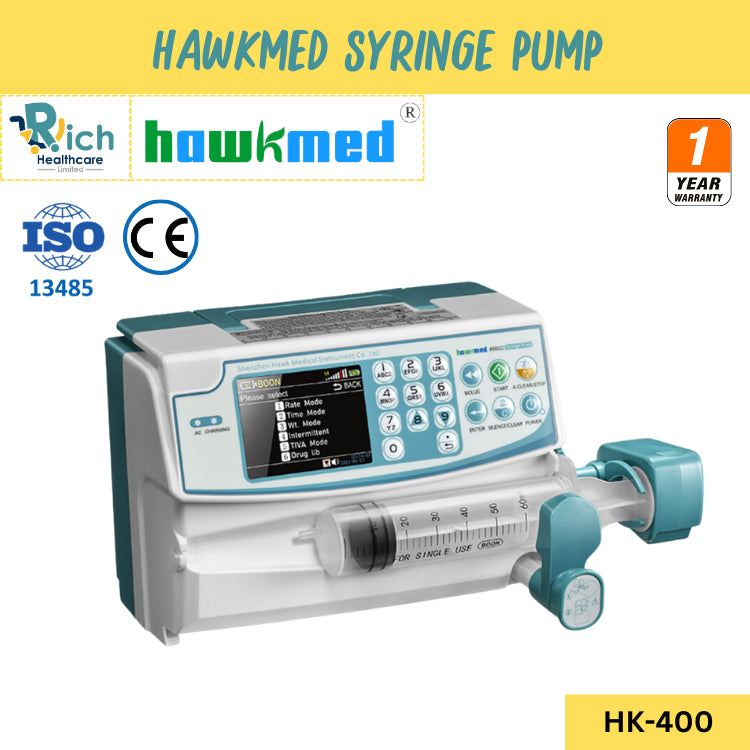

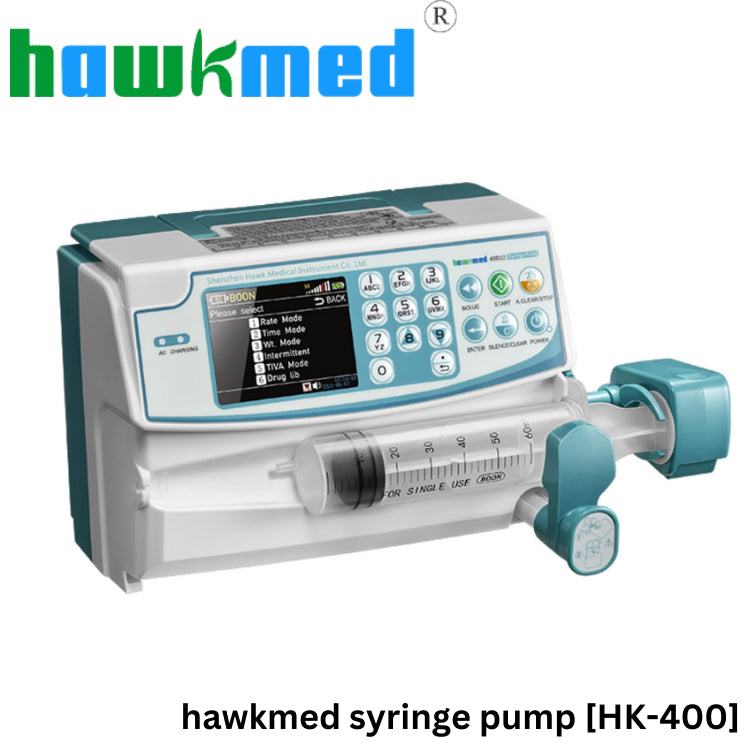

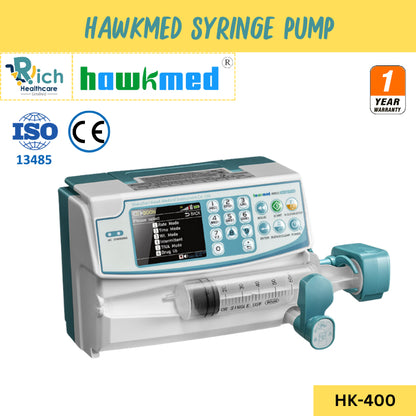

Hawkmed Syringe Pump HK-400 [1 Year Warranty]

Specific Features

Syringe Pump

Model HK-400

Purpose

For intravenous infusion of fluids to patients.

General Features

1. Precisely controls flow rate and volume of fluid infused into the body.

2. 2.8-inch color LCD display. Curved design for easy cleaning.

3. Dimensions (W x L x H): 125 x 300 x 130 mm. Weight: approximately 1.8 kg.

4. Rear mounting bracket Can be installed on both vertical and horizontal poles.

5. Powered by AC 100-240V 50/60HZ or DC 12±1.2V.

6. Includes a rechargeable lithium polymer battery, 7.4V 1900mAh.

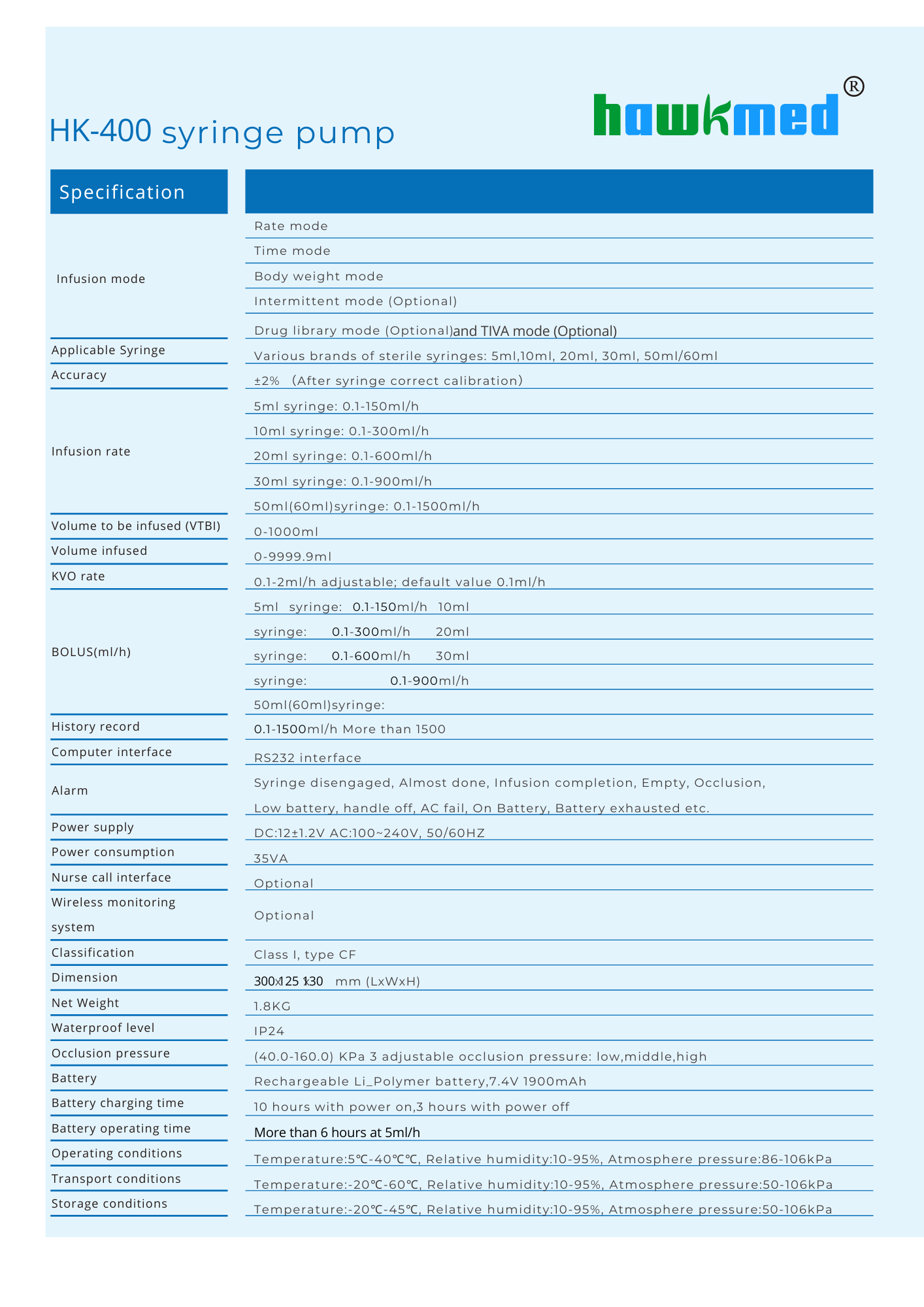

Technical Features

1. Flow rate can be adjusted according to the syringe size as follows:

1.1 5ml syringe: 0.1-150ml/h

1.2 10ml syringe: 0.1-300ml/h

1.3 20ml syringe: 0.1-600ml/h

1.4 30ml syringe: 0.1-900ml/h

1.5 50ml (60ml) syringe: 0.1-1500ml/h

2. Infusion rate accuracy is within ±2% (after (calibration)

3. The Volume to be Infused (VTBI) can be set between 0-1000ml and the Volume infused between 0-9999.9ml.

4. The Keep Vein Open (KVO) can be set between 0.1-2ml/h.

5. The Bolus can be set according to the syringe size as follows:

5.1 5ml syringe: 0.1-150ml/h

5.2 10ml syringe: 0.1-300ml/h

5.3 20ml syringe: 0.1-600ml/h

5.4 30ml syringe: 0.1-900ml/h

5.5 50ml (60ml) syringe: 0.1-1500ml/h

6. The Purge Rate can be set according to the syringe size as follows:

6.1 5ml syringe: 150ml/h

6.2 10ml syringe: 300ml/h

6.3 20ml syringe: 600ml/h

6.4 30ml syringe: 900ml/h

6.5 50ml (60ml) syringe: 1500ml/h

7. Data storage for over 1500 records.

8. Occlusion pressure alarms can be set at three levels: low, middle, and high (40.0-160.0) kPa, with four units of change: kPa, psi, bar, and mmHg.

9. Six infusion rates can be set: Rate mode, Time mode, Body weight mode, Drug Library mode, Intermittent mode, and TIVA mode.

10. Data logging and event data transmission are available. Computer-enabled

11. Double CPU (using a CPU) is used for management, processing, and signal capture for safe operation.

12. Safety and warning systems are provided, with sound and light warnings as follows:

12.1 Improper syringe connection

12.2 AlmostDone: 3 minutes before VTBI is complete

12.3 Infusion completion

12.4 Near empty

12.5 Occlusion

12.6 Battery use and low battery, power failure, or non-powered operation

13. The device has a built-in battery when fully charged. Continuous use for at least 6 hours at a rate of 5 ml/h.

14. Can be used with standard syringes of 5 ml, 10 ml, 20 ml, 30 ml, 50 ml, and 60 ml.

Accessories

1. 1 power cord

2. 1 manual

Special conditions

1. This product is from Shenzhen Hawk Medical Instrument Co., Ltd., China, under the brand name hawkmed.

2. Manufactured to ISO13485, IEC60601-1, and CE certified.

3. 1-year warranty under normal use.
